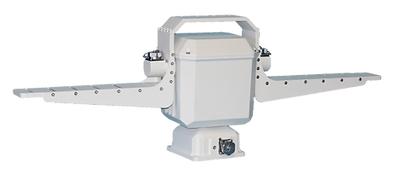

A flexible loaded P/T
with over 40KG load capacity
2025
New release
SO 1040
Heavy Duty & high positioning Accuracy
Pan/Tilt
for ultra-long-range surveillance camera
or Multi-task monitoring sensors
A heavy duty PT specifically designed for ultra long range surveillance camera or other monitoring units weighing up to 40Kg that require precise control.
Applied to monitoring of large areas such as perimeter defense, homeland security, fire/smoke-detection or drone detection.
Harmonic drive & close-loop control system makes smooth PTZ control with high precision that the positioning accuracy can reach 0.005°
360° horizontal omnidirectional and super large pitch angles from -90° to 90° Tilt range.
Weatherproof IP67
Programmable open interface to other detection devices
PTZ
360° endless
-90°-90°
Top load 10KG, Pan 60°/s, Tilt 40°/s
Top load 20KG, Pan 50°/s, Tilt 30°/s
Top load 30KG, Pan 40°/s, Tilt 20°/s
Side load 10KG, Pan 60°/s, Tilt 40°/s
Side load 20KG, Pan 50°/s, Tilt 30°/s
Side load 30KG, Pan 40°/s, Tilt 20°/s
Side load 40KG, Pan 20°/s, Tilt 10°/s
255
Pan: ±0.005°; Tilt: ±0.01°
Harmonic gear driving
Top load / Side load
Pelco D/2400/4800/9600(default)/19200 Optional
Pan Range
Tilt Range
Max.Speed
Preset Position
Presetting Precision
Driving
Load Mode
Communication Protocol
General
DC24V±10%/DC48V±10%
DC24V/ DC48V optional
RS485/ RS422 optional
10M/100M Adaptive Ethernet port *1
Audio input *1 Audio output *1
Alarm input *1 Alarm output *1
Analog video *1
Ground cable *1
DC24V (top load 4A/ side load 8A)
RS485/RS422*1
Ethernet port *1
Audio input *1
Analog video *1
Ground cable *1
Input Power
Input Interface
Output Interface
Working temperature
Protection Level
Mount Option
Dimension
Weight
-40-60°C
IP67, TVS 6000V Lighting protection, surge protection
Top Mounting
310*192*325.5 mm
≤ 9Kg
