SO 202
All-in-one
IR Zoom Camera
A bullet cameras with all metal structure that allows for the flexible integration of various camera modules.
Optional AF zoom camera modules up to 40X zoom.
With its excellent waterproof ability up to IP68, it can be used in a variety of harsh environments.
Optional IR illumination allows to see up to 120m in dark environment.
Optional AI function with deep learning capability.
Optional Side, top or lifting mounting.
​
Camera
Image sensor
Effective Pixels
Minimum Illumination
Aperture
Horizontal view
Shutter
1/1.9" Progressive Scan CMOS, 2MP
1920(H) x 1080(V), 2 Mega pixels
Color: 0.0021Lux@F1.6, color; 0.00021Lux@F1.6, black
F1.6-F3.4
69°-4.1°
1/6 -1/8,000/S
Lens
Focal Length
Optical Zoom
Focal Length 6.8mm-136mm
Optical Zoom 20x, 16x digital zoom
Infrared
IR Distance
IR Intensity
Up to 120m
Automatically adjusted, depending on the zoom Ratio
Video
H.265 /H.264 /MJPEG
3 streams
BLC /HLC /WDR (120dB)
Auto, ATW, Indoor, Outdoor, Manual
Auto /Manual
Compression
Streaming
BLC
White Balance
Gain Control
Network
Ethernet
Interoperability
Web Viewer
RJ-45 (10/100Base-T)
ONVIF, PSIA, CGI
IE 10 /Google/ Firefox /Safari..
General
DC 12V, 12W (Max)
-40°C -70°C
90°% or Less
IP68, TVS 4000V Lighting protection, surge protection
Wall Mounting, Top Mounting, Lift mounting
3.5Kg
Power
Working temperature
Humidity
Protection Level
Mount Option

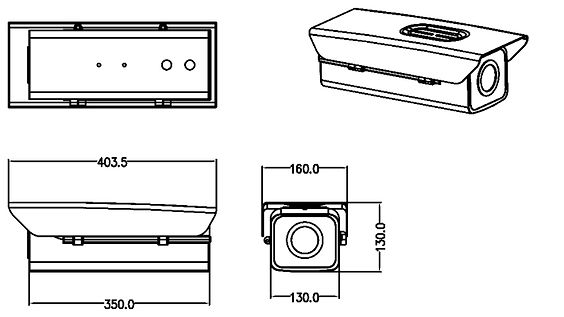

403.5*160*130mm
Weight
Dimension
