SO CBS2137/4137
37X 2MP/4MP

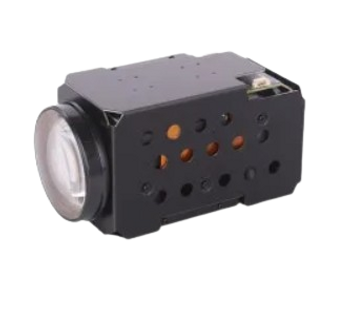

Network Zoom Camera Module
37x Optical Zoom
Support H.265/H.264/MJPEG video compression algorithm, multi-level video quality configuration and encoding complexity settings
ICR automatic switching, 24 Hours day and night monitor
Starlight Low Illumination
Support Backlight Compensation, Automatic Electronic Shutter
Support 3D Digital Noise Reduction, High light Suppression, 120dB Optical Width Dynamics
Support One Channel Audio Input and Output
Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
Support 256G Micro SD / SDHC / SDXC
Support ONVIF
Camera
Image sensor
Max Resolutions
Minimum Illumination
Aperture
Focal Length
Horizontal view
Minimum Working Distance
Shutter
1/1.8" Progressive Scan CMOS
2137: 2MP, 1920 (H)×1080(V) @30fps Live Image
4137: 4MP, 2560 (H)×1440(V) @30fps Live Image
Color: 0.001Lux@F1.6, color; 0.00051Lux@F1.6, black
DC drive, F1.5-F4.8
6.5-240mm, 37 Optical Zoom
58.6-2.02°ï¼ˆwide-tele)
100mm-1500mm (wide-tele)
1/25s to 1/100,000sï¼›Supports delayed shutter
Video
H.265 /H.264 /MJPEG
50Hz/25fps(1920×1080,1280×960,1280×720);
60Hz/30fps(1920×1080,1280×960,1280×720)
​Saturation,Brightness,Contrast and Sharpness be adjusted BLC/HLC/WDR (120dB)
Auto, ATW, Indoor, Outdoor, Manual
AE/Aperture Priority/Shutter Priority/Manual Exposure
Auto / One step / Manual/ Semi-Auto
Support
Compression
Main Stream​​​​
Image Settings
BLC
White Balance
Exposure Mode
Focus Mode
Optical Defog
Network
Ethernet
Interoperability
Web Viewer
RJ-45 (10/100Base-T)
ONVIF, PSIA, CGI
IE 10 /Google/ Firefox /Safari..
General
DC 12V, 2.5W (4.5W Max/ICR)
-30°C -60°C
90°% or Less
IP36pin FFC (Network port, RS485, RS232,SDHC, Alarm In/Out, Line In/Out, power) ,USB, LVDS,HDMI(optional)
600g
Power
Working temperature
Humidity
External Interface
138.5x63x72.5mm
Weight
Dimension
